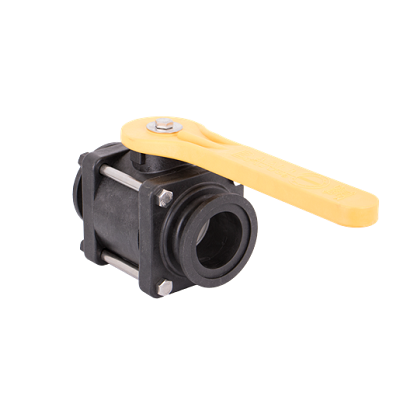

2" Full Port Manifold Valve - 4 Bolt
Details:
- • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
- • FKM seals
- • Precision molded in polypropylene, polypropylene is reinforced with fiberglass for additional strength
- • PTFE self-lubricating stem bushings and seats cannot stick or bind
- • Self-aligning ball moves freely against the PTFE seats for smooth operation
- • Valve opens and closes with very little pressure on the handle
- • Stainless steel bolts
- • Maximum operating pressure: 300 PSI

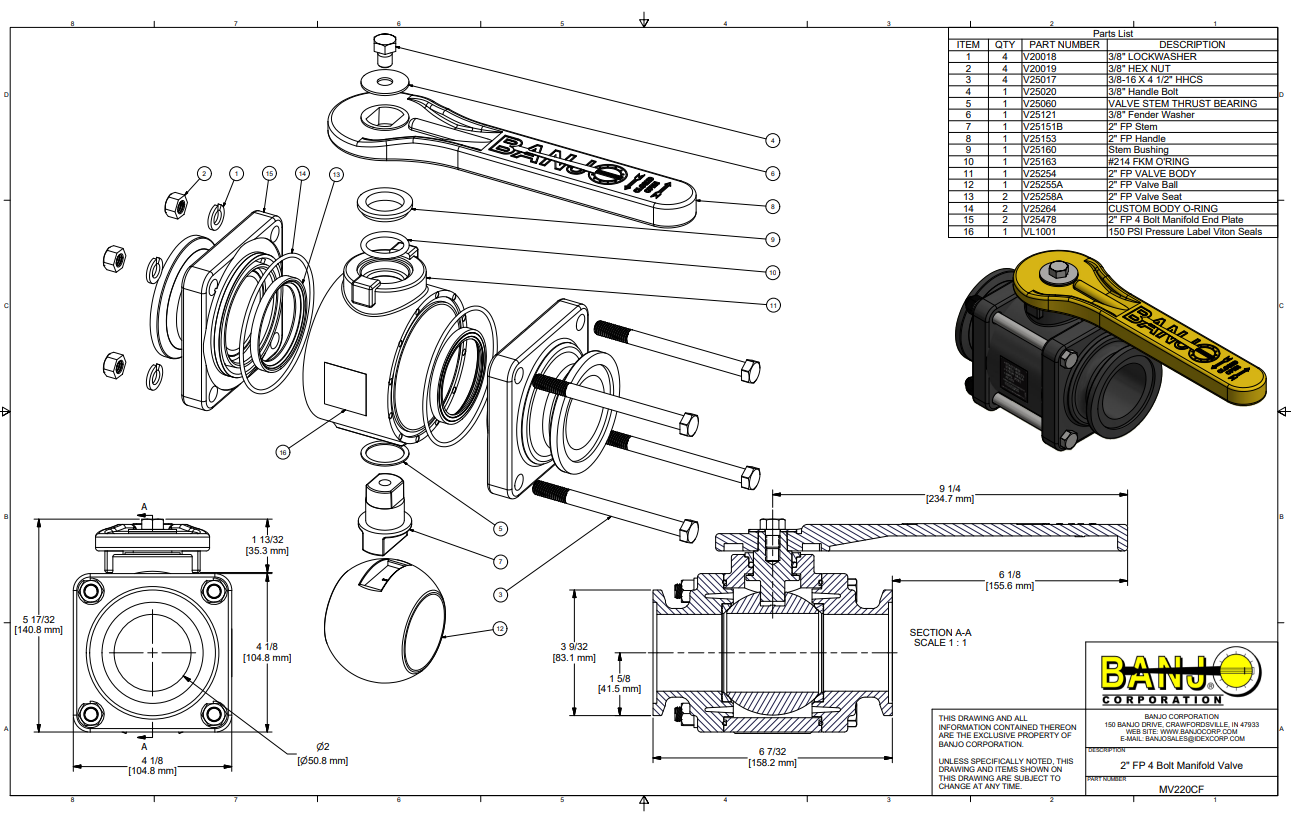

Downloadable spec sheet viewable HERE
