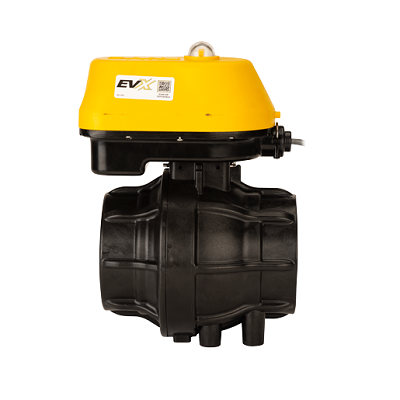

3" Full Port EVX Electric Valve - Banjo EVX Series


3
Item Number: EVX300
Unit Price:
$924.00
Quantity


3" Full Port EVX Electric Valve - Banjo EVX Series

Banjo EVX Series sets the new standard for electric valve toughness, passing 52 separate durability torture tests including mechanical shock, vibration, rain/shine, operating pressure, and more. This is 12-volt DC operated with open/closed indicator, ON/OFF with 3 second response, regulating with 4 second response, and is IP68 waterproof.

Details:

  • • Maximum operating pressure: 150 psi
  • • IP68 waterproof
  • • -0 to 150F (-18 to 65C) operating
  • • -67 to 221F (-55 to 105C) storage
  • • Actuator rated to 500,000 cycles
  • • Valve rated to 50,000 cycles leak-free
  • • 316 stainless steel ball & stem
  • • Fiberglass reinforced polypropylene
  • • Zinc alloy lower actuator housing
  • • PTFE seats
  • • FKM stem seals

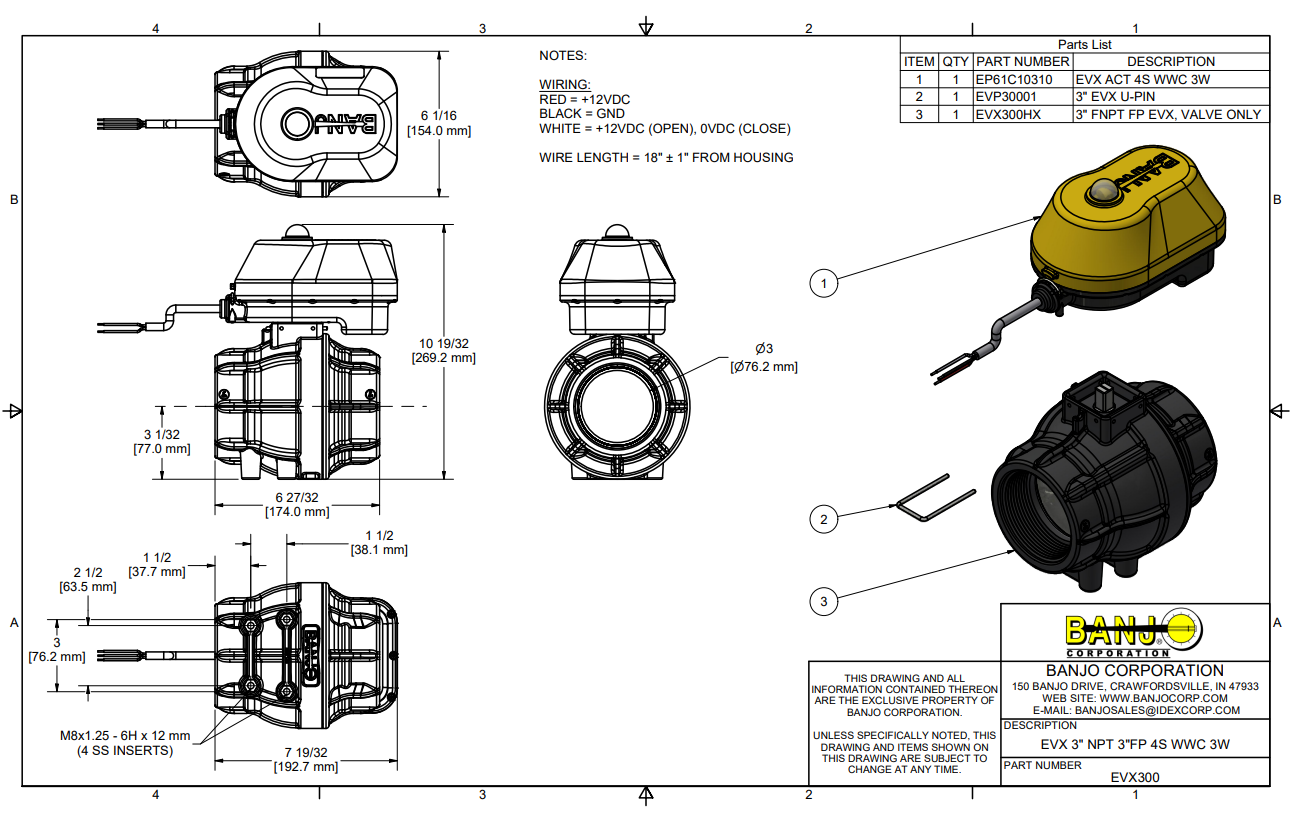

Downloadable spec sheet viewable HERE
