Battioni MEC11000 Ballast, 393 CFM


Battioni MEC11000 Ballast, 393 CFM

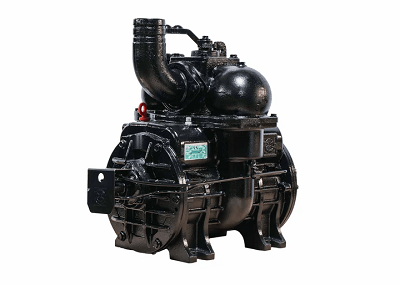

Images/MEC11000_2.png Images/ballast.png
Item Number: MEC11000
Size/Color
Quantity


Battioni MEC11000 Ballast, 393 CFM (Clockwise OR Counterclockwise)

*Must be shipped via Freight!* See our Freight Terms and Conditions HERE

Introducing the BALLAST pump – a groundbreaking technology that is designed to provide exceptional performance and ease of maintenance, the BALLAST pump represents the next generation in pumping. Don't settle for anything less than the best – choose the BALLAST pump for reliable, long-lasting performance, even in the most challenging environments.

Details:

  • • Auto lube
  • • BALLAST pump is designed to provide continuous operation at up to 70% range vacuum, thanks to its advanced automatic air injection cooling system
  • • Perfect choice for heavy-duty applications, thanks to its innovative Crash Protection System
  • • The sliding flange protection mechanism prevents housing or rotor breakage in the event of vanes crashing, ensuring reliable and efficient operation in the toughest conditions
  • • With its cutting-edge technology and superior construction, the BALLAST pump delivers exceptional performance and durability, making it the ideal choice for professionals and contractors who demand the best
  • • Available in clockwise or counterclockwise rotation
Specifications:
Max rate of flow, (CFM)
 393
Max rpm, (rpm) 1400
Max working pressure, Bar (PSI) 2.5 (36)
Max vacuum %, InHg 95% (28.5")
Power @ max vacuum, kW (hp) 21 (28.2)
Net weight, Kg (lbs.) 147 (325 lbs.)
Dimensions, In (LxWxH)
*PUMP LENGTH IS FROM FRONT OF SHAFT*		 23.81" x 15.35" x 20.63"

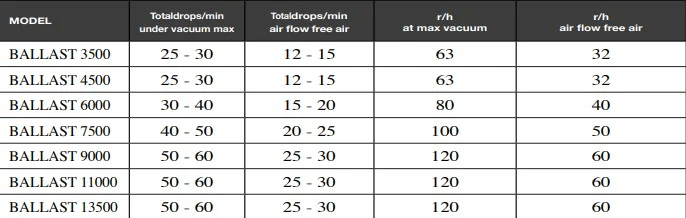

Oil tank capacity, (I) 3
Downloadable Manuals and Files

- Information Manual
- Instruction and Maintenance Manual

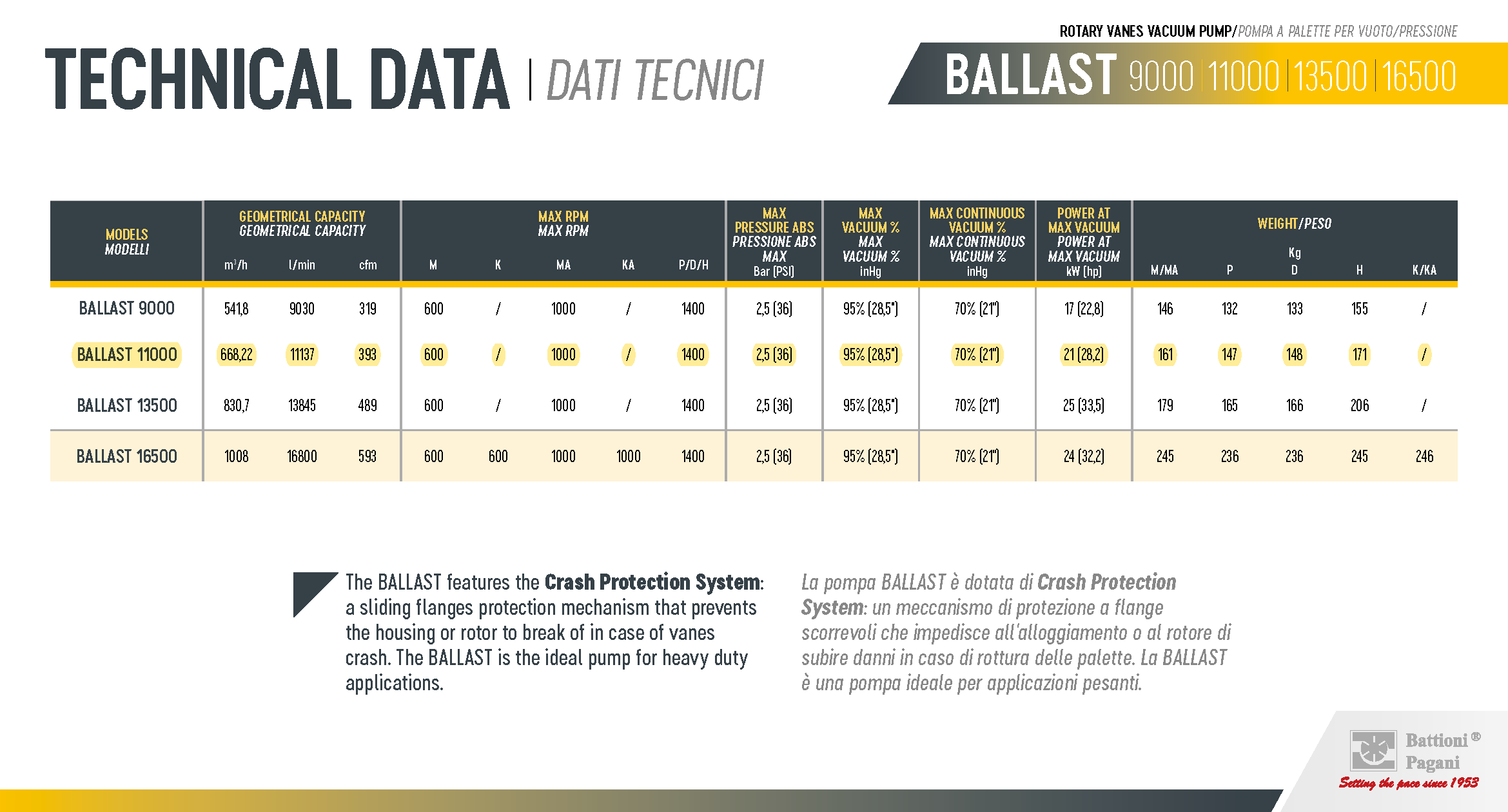

- Technical Data

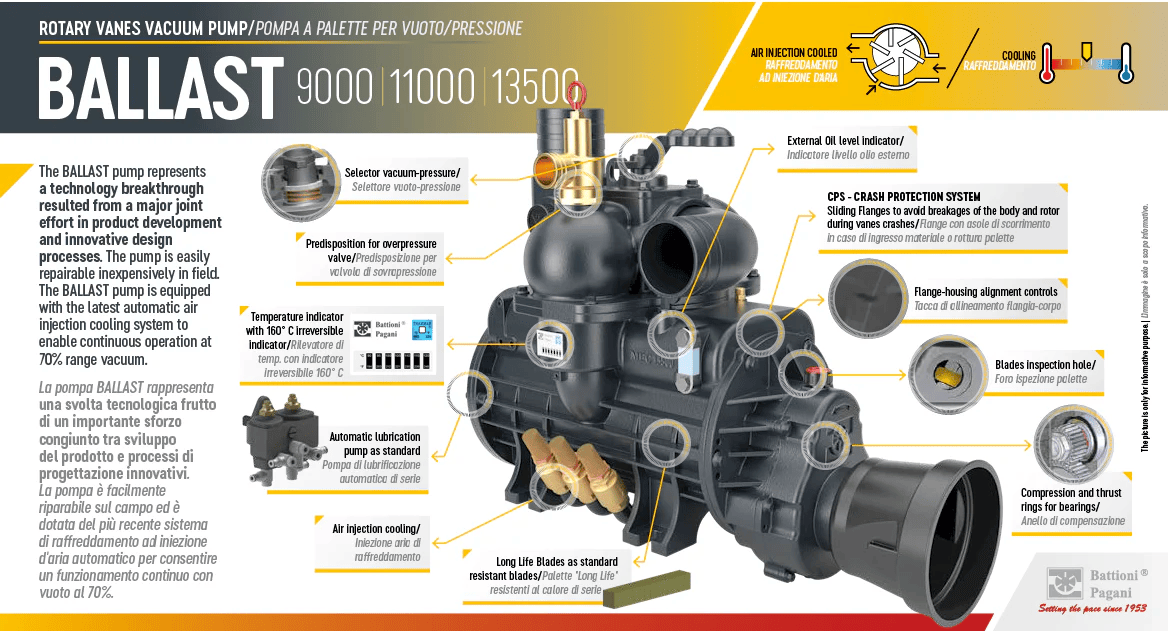

- Ballast Parts
