KPS490 Muffler Pack


KPS490 Muffler Pack
Item Number: KPS490MUFFLER
  Be the first to review this item
Unit Price:
$5,360.00
Quantity


Must be shipped via Freight! See our Freight Terms and Conditions HERE

Muffler Pack Bolt and Go System Includes:

• KPS490 Pump
• Right Angle Gear Box
• Auto Align Bracket
• Pump Stand
• Oil Catch Muffler
• All Items Fully Assembled!

The reliability and strength of Battioni's pumps are the result of continuous design and manufacturing improvements accomplished during 40 years of deployments. It’s simple and practical design make these pumps the product of reference for agricultural and municipalities septic applications.

Battioni KPS490 Pump Specifications:

The KPS pump series features liquid cooled housing enabling continuous operation in vacuum and in pressure modes making them ideal for applications where long time continuous non-stop operation is required (i.e. oil fields, combined vacuum trucks, industrial applications). The KPS series is the recommended choice for professional users and contractors. Features include: Integrated Final Filter, Built in water recirculation pump, External Oil Tank, Liquid and Ballast Port Cooling, Sliding Flanges to avoid breakages of the body and rotor during vane crashes, Inspection hole for checking vane wear, Automatic lubrication (2,3 or 4 points), cooling pump, 4-ways valve, Poppet Check valve, Side outlets with revolving elbows, Long Life Blades, Crash protection System Air Injection cooling, predispositon integrate air filter.

• Version P: 32mm Smooth Cylindrical Shaft
• Pump Drive Rotation: Clockwise (CW) and Counterclockwise (CCW) available
• 3" Connections
• Oil Tank Capacity - 4 Quart
• Injection-Air cooled
• RPM Range: 800 - 1400
• Maximum Air Flow: 477CFM @ free air
• Maximum Intermittent Vacuum: 28"
• Maximum Intermittent Pressure: 30PSI
• Net Weight: 451 LBS

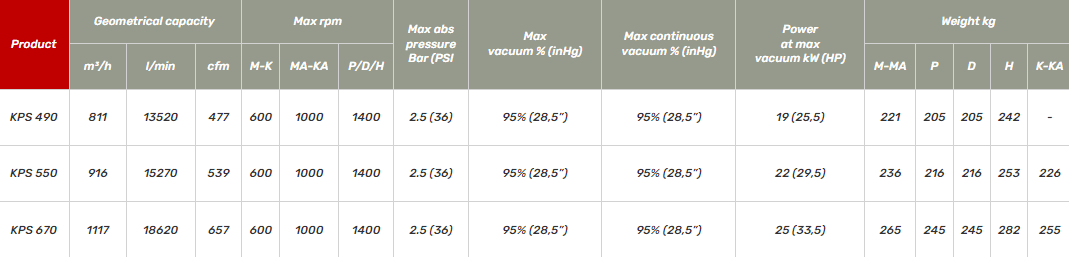

KPS Pump Specifications and Comparison Table viewable on product webpage
