Battioni MEC11000 Max Pack, 393 CFM, B1100
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE

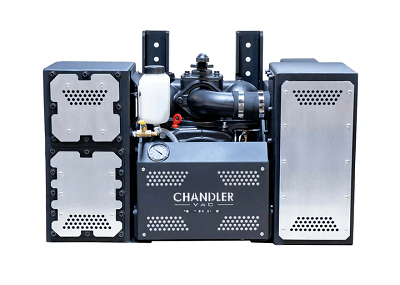

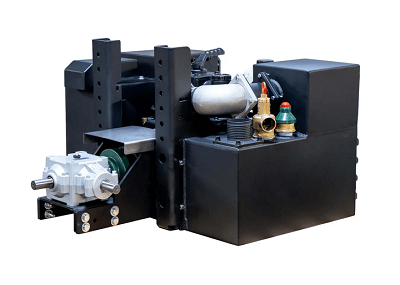

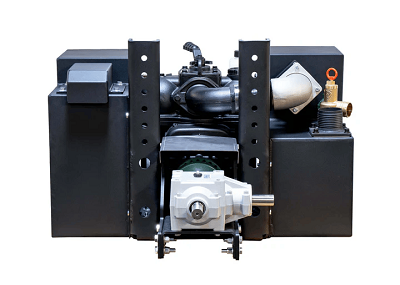

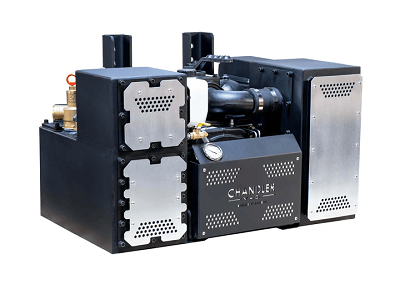

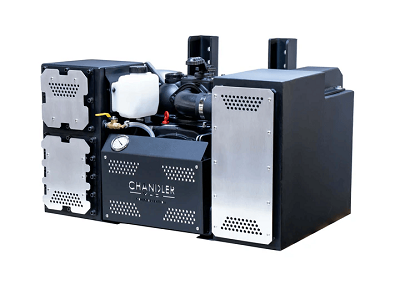

The B1100 Spartan package is built around the Battioni Ballast 11000 rotary vacuum pump. This vacuum pump is an absolute beast! The BALLAST pump is the perfect choice for heavy-duty applications, thanks to its innovative Crash Protection System. Featuring a sliding flange protection mechanism, this system prevents housing or rotor breakage in the event of vanes crashing. This ensures reliable and efficient operation, even in the toughest conditions.
Details:
| Specifications: | |
|---|---|
| Max rate of flow, (CFM) |
393 |
| Operating speed, (rpm) | 1200-1400 RPM |
| Max working pressure, Bar (PSI) | 2.5 (36) |
| Max vacuum %, InHg | 95% (28.5") |
| Power @ max vacuum, kW (hp) | 21 (28.2) |
| Net weight, Kg (lbs.) | 326 (720 lbs.) |
|

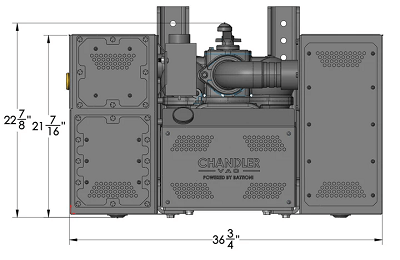

Dimensions *LENGTH IS FROM FRONT OF SHAFT*, In (LxWxH) |
41 5/16" x 36 3/4" x 22 7/8" |
| Oil Tank Capacity, (l) | 3 |
