Moro PM3000 Pump Specifications:
| Specifications: | |
|---|---|
| Weight | 1250 lbs |
| Dimensions |
33" × 47" × 37"
|
| CFM | 1001 |
| PSI | 29 |
| RPM | 1200 |
| Flange | 4" |
| Oil tank capacity | 3.17 gallons |
| Suggested tank size | 3000-6000 gallons |
| Max vacuum | 28 InHg |
| Continuous duty vacuum | 24 InHg |

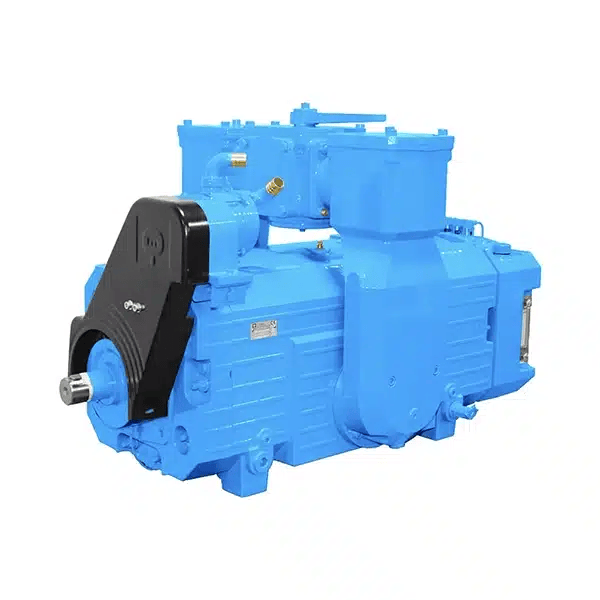

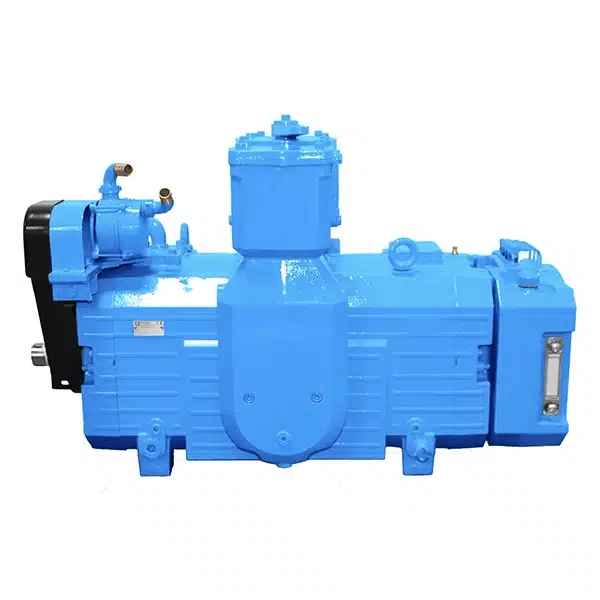

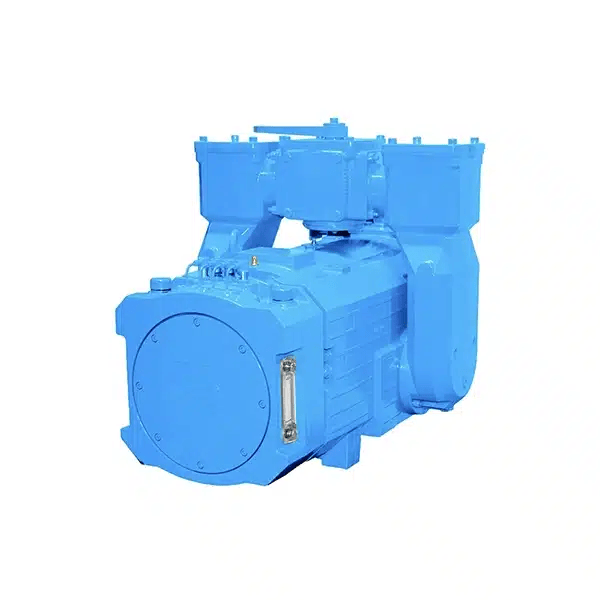

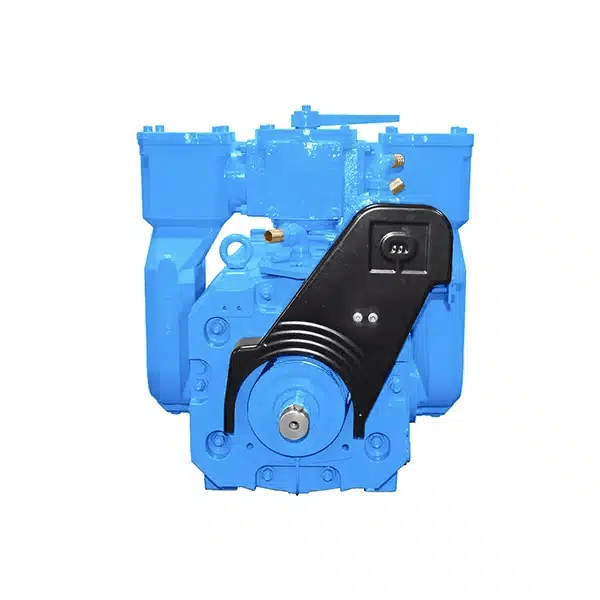

Moro PM3000 Vacuum Pump
The PM3000 vacuum pumps represent the pinnacle of technology in liquid-cooled suction pumps. This particular model is meticulously designed for industrial applications that demand varying capacity requirements. Our extensive inventory provides a range of distinct Vacuum Pump Series to cater to your diverse needs. Constructed with a high-resistant cast iron body, these pumps feature an advanced cooling circuit to maximize heat dissipation, ensuring optimal performance in demanding environments.
STORM SERIES: Advanced Liquid-Cooled Suction Vacuum Pump Technology
The Moro PM3000 Vacuum Pump falls within the STORM Series, representing the pinnacle of liquid-cooled suction pump technology. Tailored for industrial applications requiring diverse capabilities, this series offers five distinct models to address varying demands effectively.
Superior Construction for High Resistance and Durability
Constructed from high-resistant cast iron, the PM3000 features an advanced cooling circuit designed to maximize heat dissipation. This robust design ensures that the pump remains operable even under the most demanding conditions, providing an extended service life and consistent performance.
Noise and Heat Reduction for Optimal Operation
The STORM Series has been meticulously engineered to reduce noise and heat production. With finely tuned air intake and discharge ports, coupled with an efficient cooling circuit, the PM3000 maintains a lower operating temperature and allows for prolonged deep vacuum use.
Pumps with Integrated Water Recirculation and Inspection Port
Standard across the series, the liquid-cooled vacuum pumps are equipped with a water recirculating pump. Additionally, a special inspection port in the pump body permits a visual check of the equipment’s wear, making maintenance straightforward and efficient.
High-Performance Kevlar Vanes and Integrated Valves
The vanes used in the PM3000 are crafted from high-heat-resistant Kevlar material, ensuring reliable performance under high temperatures. The non-return and four-way valves are seamlessly integrated into the pump, enhancing operational efficiency and reliability.
Impressive Flow Capacity
With a substantial flow capacity of 1001 CFM, the Moro PM3000 Vacuum Pump delivers robust performance, making it an invaluable asset for a variety of industrial applications. The superior design and advanced features ensure that the PM3000 stands out in terms of efficiency, durability, and capability.
