Moro PM70T Auto Lubrication


Moro PM70T Auto Lubrication
Item Number: PM70T
Size/Color
Quantity


Must be shipped via Freight! See our Freight Terms and Conditions HERE

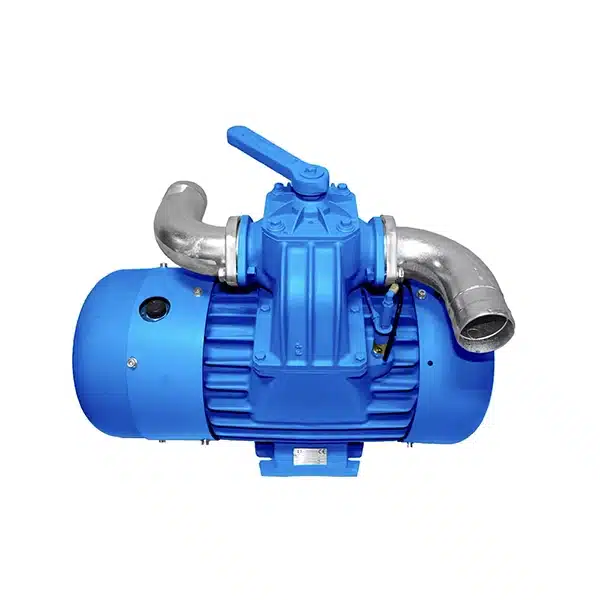

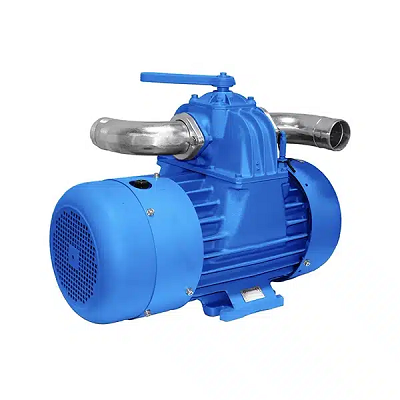

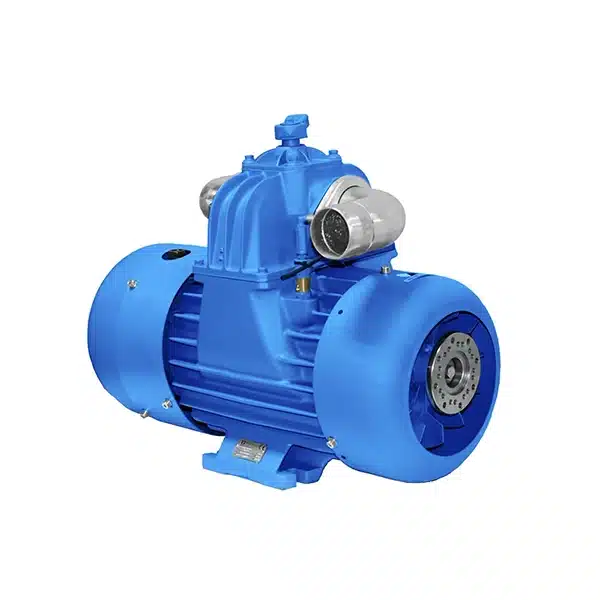

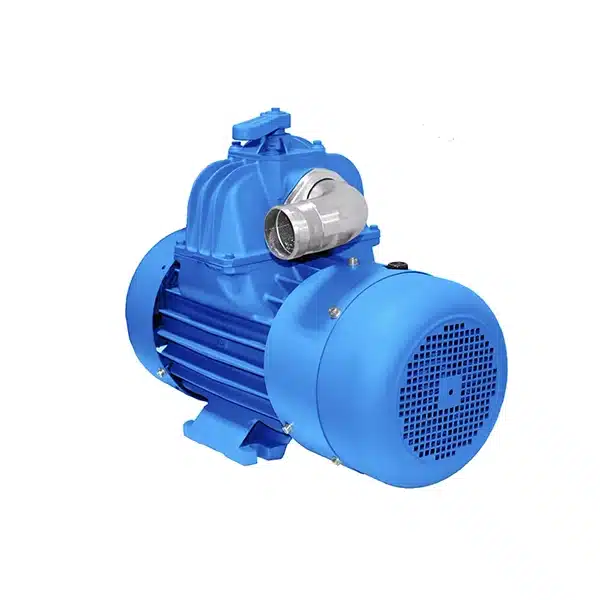

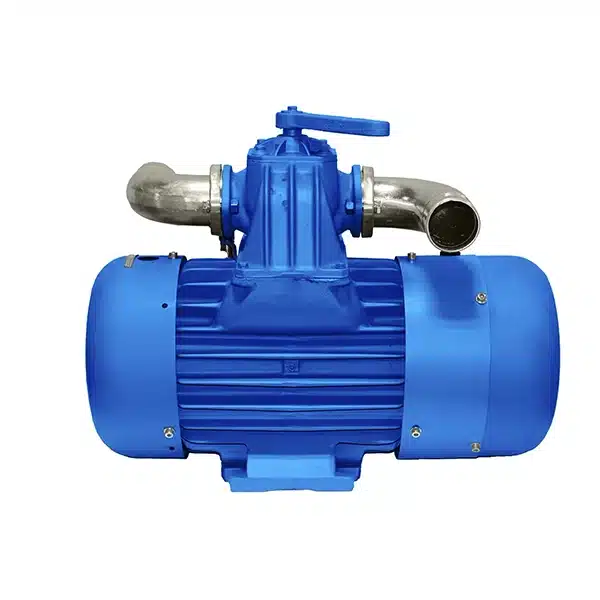

Moro PM70T Pump Specifications:

The TURBO Series (fan cooled) vacuum pumps utilize dual-fan technology to drastically increase heat dissipation. These pumps are designed to be used in industrial applications that have varying capability requirements. This series can be easily mounted onto a truck frame and connected directly to the truck’s drive system, making this vacuum pump essential for any pump-related duties. Moro Vacuum Pump features include: Large open ported manifold design reduces noise and air friction, High performance Kevlar vanes with visual inspection ports in casing, High quality Viton oil seals - longer life than traditional oil seals, Low rotating speed leads to longer pump life, Remote oil tank, Sealed bearings - low oil consumption, Quiet operation.

• 1-3/8" (1.375 inches) Shaft Size
• Pump Drive Rotation: Clockwise (CW)
• 3" Connections
• Oil Tank Capacity - 3.6 Quart
• Fan cooled
• RPM Range: 1100 - 1300
• Maximum Air Flow: 292CFM @ free air
• Maximum Air Flow: 210CFM @ 18 inHg (inches of Mercury)
• Maximum Intermittent Vacuum: 28"
• Maximum Intermittent Pressure: 21.7PSI
• Net Weight: 287 LBS
• Recommended Oil ISO 100
