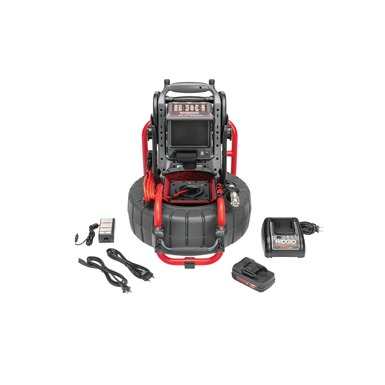

Introducing the game-changing RIDGID Compact M40 Camera System - your ultimate solution for superior inspection needs. Designed to deliver outstanding performance akin to the SeeSnake Mini, this innovative system comes in the highly sought-after Compact format, seamlessly merging a compact build with an all-in-one monitor capability. Revolutionizing the inspection experience, the Compact M40 is now equipped with cutting-edge TruSenseTM technology, enhancing its functionality and precision. With an impressive 131 feet (40 meters) of moderately stiff push cable, this system strikes the perfect balance between flexibility and maneuverability, effortlessly navigating bends and corners. Unlike traditional options, our Compact M40 stands out by providing a user-friendly interface and exceptional capabilities, making inspections more efficient and productive. Elevate your inspection game with the RIDGID Compact M40 Camera System, setting new standards in performance, innovation, and reliability.
The Compact M40 Camera System offers similar performance to the SeeSnake Mini in the popular Compact form factor, combining a small package and all-in-one monitor capability. With TruSense™ technology. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns.
| Attribute | Device Only | Device + Battery & Charger |
|---|---|---|
| RIDGID Part Number | 63813 | 63818 |
| UPC | 95691638137 | 095691638182 |
| Line Capacity | 1.5" to 8" (38 mm to 203 mm) | 1.5" to 8" (38 mm to 203 mm) |
| Push Cable Length | 131' (40 m) | 131' (40 m) |
| Push Cable Diameter | 0.36" (9.1 mm) | 0.36" (9.1 mm) |
| Push Cable Core | 0.14" (3.5 mm) | 0.14" (3.5 mm) |
| Fiberglass Push Cable Bend Minimum Radius | 3" (76 mm) | 3" (76 mm) |
| Weight (without batteries) | 22 lbs. (10 kg) | 22 lbs. (10 kg) |
| Size Length | 25" (63.5 cm) | 25" (63.5 cm) |
| Width | 14" (35.6 cm) | 14" (35.6 cm) |
| Height | 17" (43.2 cm) | 17" (43.2 cm) |
| Camera Type | 1" (25 mm) | 1" (25 mm) |
| Frequency | 512Hz | 512Hz |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) | 14°F to 158°F (-10°C to 70°C) |
| Ingress Protection (without Monitor) | IPx5 | IPx5 |
| Weight | 29.9 lbs | 29.9 lbs |
| Condition | New | New |
| Google Category | Hardware | Hardware |
Click here to view or download the M40 operator's manual.
Click here to view or download the M40 parts and accessories catalog.
