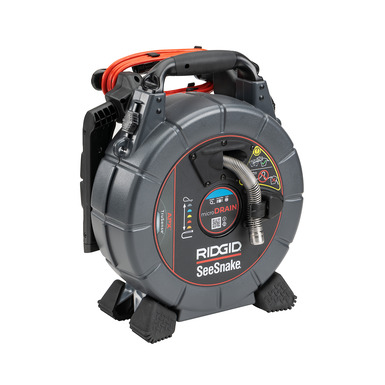

The RIDGID SeeSnake® microDRAIN APX™ with TruSense is the ideal pipe inspection camera for small pipes and conduits with tight turns. The advanced, high-flexbility push cable and a small-radius camera design allows inspection through small-diameter pipes, p-traps, and small-radius ends that other inspection systems often cannot inspect. It offers enhanced camera functionality including TruSense technology and auto-image rotation for bright, clear in-pipe images and on-screen camera angle and image orientation feedback. The microDRAIN APX includes a kickstand for use with the CSx Via™ and offers enhanced stability.
Features
- • Flexibility - High-flex push cable navigates tight turns and small diameter pipes - pass multiple 90° bends in most 1.5" (40 mm) drain lines.
- • Enhanced Camera Functionality - APX camera reels offer TruSense technology with an HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.
- • Auto-Image Flip - Rotates camera image wihout any moving parts.
- • Portability - Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.
- • Stability - Built-in kickstand for improved ergonomics can be used uprigt, at a 45 degree angle for improved leverage on four feet to provide clearance for use with CSx Via.
- • Durability - Hardened stainless steel camera head and spring assembly is durable and reliable for a long service life.
- • Visibility - Camera heads feature long-lasting high-efficiency LEDs that deliver better in-pipe visibility and higher color accuracy.
- • Traceability - Integrated 512 Hz sonde allows for easy line tracing and locating.
- • Versatility - Works with all SeeSnake monitors, including CSx Via Wi-Fi Hub, or the CA-350 inspection camera (CA-350 adpter sold serparately).
Includes
- • SeeSnake microDrain APX
- • Ball guides
- • Operator's manual
- • Spanner wrench
Specifications
| RIDGID Part Number |
70023 |
| UPC |
95691700230 |
| Camera Type |
Auto-image flip |
| Resolution |
640 x 480 pixels |
| Line Capacity |
1-1/4" to 3" (32 mm to 75 mm) |
| Push Cable Length |
65 ft (20 m) |
| Push Cable Diameter |
0.33" (8.3 mm) |
| Cable Flexibility |
High flex |
| Push Cable Minimum Bend Radius |
.75" (19.1 mm) |
| Sonde |
512Hz, integrated |
| Weight |
11.6 lbs (5.25 kg) |
| Length |
13.3 in (337 mm) |
| Width |
8.8 in (224 mm) |
| Height |
16.2 in (411 mm) |
| Drum Diameter |
12 in (305 mm) |
| Condition |
New |
| Google Category |
Hardware |
